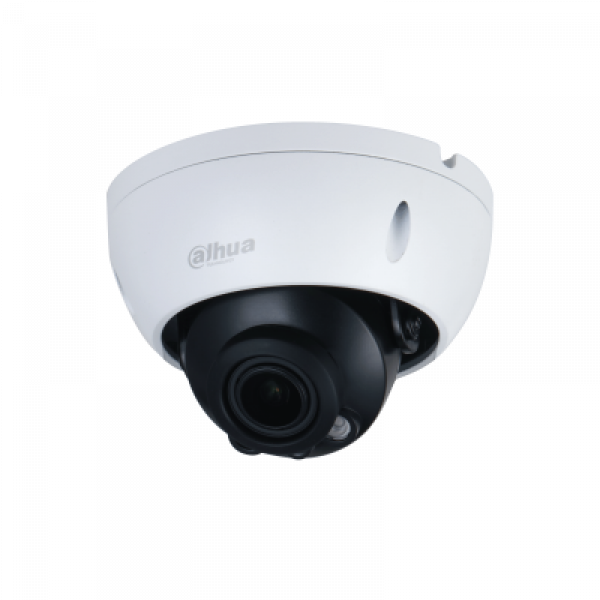

DH-IPC-HDBW1230RP-ZS-2812 Купольная IP видеокамера

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

16 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 Lux@F1.5 (Color, 30 IRE)

0.0005 Lux@F1.5 (B/W, 30 IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

40 m (131.23 ft) (IR)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR)

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–75°

Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.8 mm–12 mm

Max. Aperture

F1.5

Field of View

Horizontal: 101°–33.5°; Vertical: 52.5°–19°;

Diagonal: 125°–38.5°

Iris Control

Fixed

Close Focus Distance

1.2 m (3.94 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

48 m

(157.48 ft)

19 m

(62.34 ft)

10 m

( 32.81 ft)

5m

(16.40 ft)

T

131 m

(429.79 ft)

52 m

(170.60 ft)

26 m

( 85.30 ft)

13m

(42.65 ft)

Video

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:1920 × 1080@1–25/30 fps

Sub stream: 704 × 576@1–25 fps/704 × 480@1–30 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas
